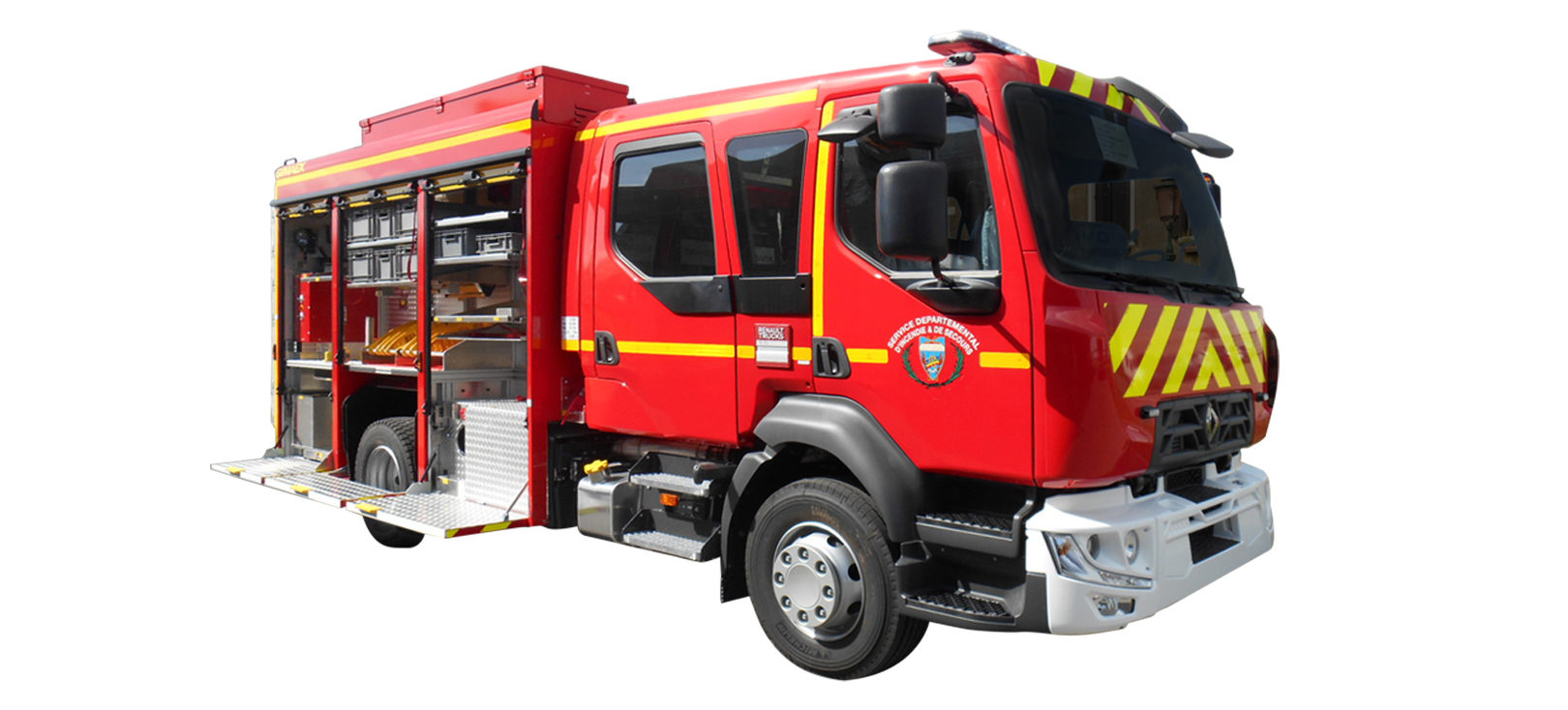

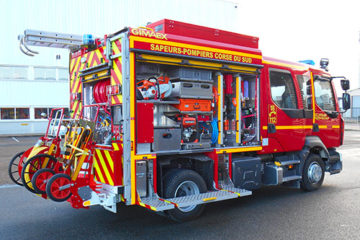

The Medium Pumper (option road rescue)
The Medium Pumper (option road rescue) is NF and EN-certified as a medium-sized vehicle equipped for urban fire brigades: for interventions on building’s fires, vehicle’s fires, and possibility road accidents (crew of 6 to 8 firemen)
General specifications
Chassis
- RENAULT - 4x2
- MAN - 4X2
- SCANIA
- MERCEDES
- 🔴 Available on 4x4 off-road chassis for rough roads(pump water tender-HR)
Equipment
- Cab: 6-8 seats (2+0+4 or 2+2+4)
- HDPE Water tank: with 3000 litres
- HDPE Foam compound tank: with 200 litres
- Pump on power take-off ; maintenance-free Centrifugal pump, automatic priming up to 8 metres (Aluminium or bronze) - 2000 lpm @ 15 bar at 3m suction lift
- Electronic Proportioning system: Mechanical in-line proportioner

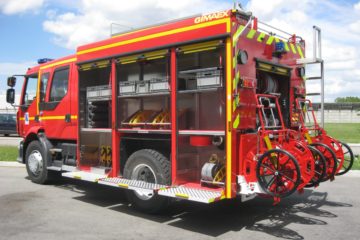

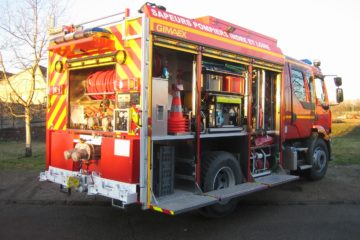

- Aluminium body work with 7 roller shutters / adjustable holders for accessories
- 2 removable hose reels – each 200 m of DN70 flat hose
- 1 First aid reel - 40 m of semi-rigid DN22 hose
- Foldable footsteps
- LED area lightning
- Pneumatically-assisted ladder’s support, controllable from the ground
- Roller ladder support for 3-section extension ladder
- CAN-Bus system/controlled from screen at rear and screen replicated in the cab
- 🔴 Available with High power pump, 3000 lpm @15 bar with 2 suction inlets 4”
- 🔴 Available Pump water tender with built-in road rescue equipment such as generator/extrication t (wheelbase 4.1 metres - overall length 8.1 metres)
Numerous options and adaptations available, to be jointly defined by the users and our engineers.
