Standard - 30/32 meters

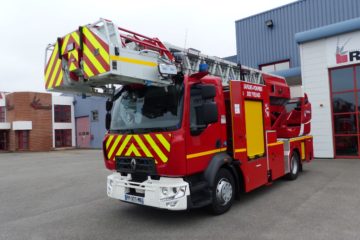

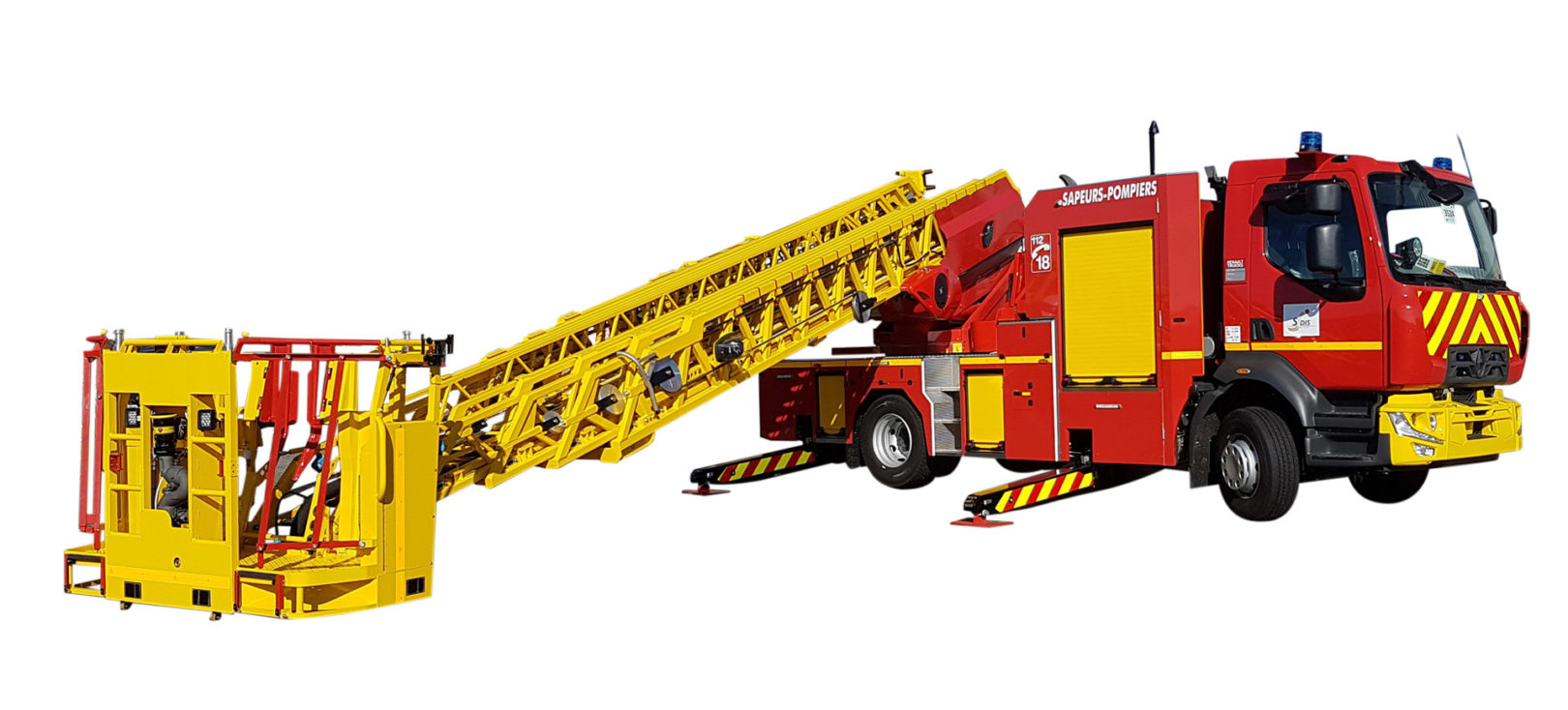

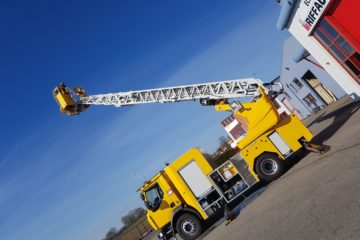

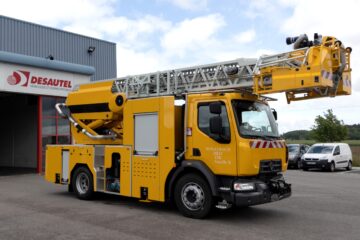

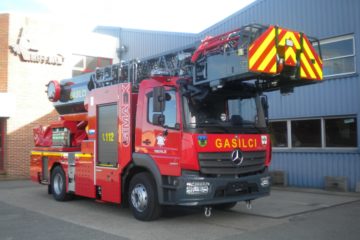

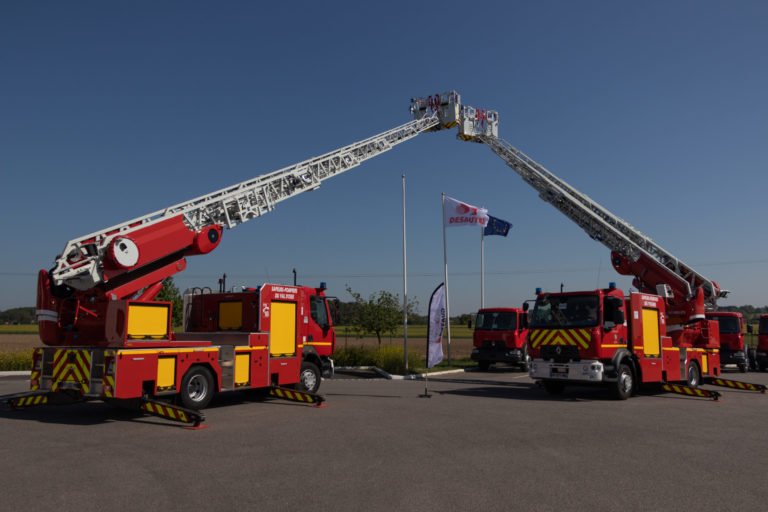

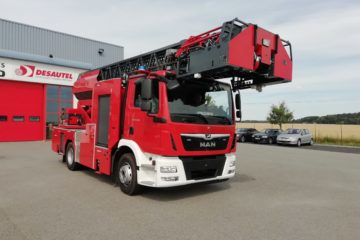

The EPC 33 PRX 5-section ladder offers high manoeuvrability and stability on very steep slopes

It is compliant with standards NF EN 14043/NF S 61-547/

General specifications

Chassis
  • Minimum GVWR: 16 tonnes
  • Overall length: 8250 mm
  • Overall width: 2500 mm
  • Overall height: 3300 mm
  • Turning circle: ~ 7.9m
Performances
  • Rescue cage load: 430 kg
  • Maximum outreach ( (430 kg)/stab.: 15.0 m
  • Maximum outreach ( (430 kg)/turntable axis: 17.6 m
  • Rescue height: 30.6 m
  • Working height: 32.1 m
  • Automatic levelling +/- 9°@ 360°
  • Automatic levelling +/- 15°@ +/- 30°
  • Turntable swivelling diameter: 4.2 m
Equipment
  • 3 combined movements
  • 5-section ladder set
  • X-C3S stabilization, dual redundancy, 4 load cells
  • Geometric control of Polaris IV&V software
  • Intrinsic Swingsafe ladder set swinging prevention
  • Ariane II platform, trapezoid design, 3 openings
  • 3D P.M.D Hitsafe obstacle detection
  • Mobile control station on demand
  • Centrale CCS4, conforme EN ISO 13849-1
  • EMC 3000 A/m
  • 200 kg stretcher support on 2x2 points
  • Monitor 1600l/min at 7 bar
  • R-Prime aluminium bodywork
Numerous options and adaptations available, to be jointly defined by the users and our engineers.
We offer complete installations thanks to our supplementary activities:
